IP69 Waterproof HD 1080P Rear View Camera and 9 IPS Monitor System H510144
IP69 Waterproof HD 1080P Rear View Camera and 9 IPS Monitor System H510144
5m/16ft + 15m/49ft 4-Pin aviation Extension cable suitable for Long Bus Truck Trailer RV Van Motorhome Schoolbus 5th wheel Tractor Camper Lorry heavy Duty etc
IP69K Waterproof Rear Camera with 4 Pin Connector, 8 LED IR Night Vison view clearly at night, 100% Not Wash Out AHD 1080P Mirror image Sensor no Distance Lines Rear View Camera, 2.1mm lens (170° horizontal wide view angle )
4Pin 9inch IPS DVR monitor 1080P, Build in Great Loop Recording functions. Image can be rotate UPside Down, with 2 channel video input,can display (single video )or (2 video )at same time,switch by V1/V2,V2 reversing priority
Monitor will automatically switch for V2 when the reversing gear is selected( Monitor blue cable need to connect for gearbox reversing trigger+)

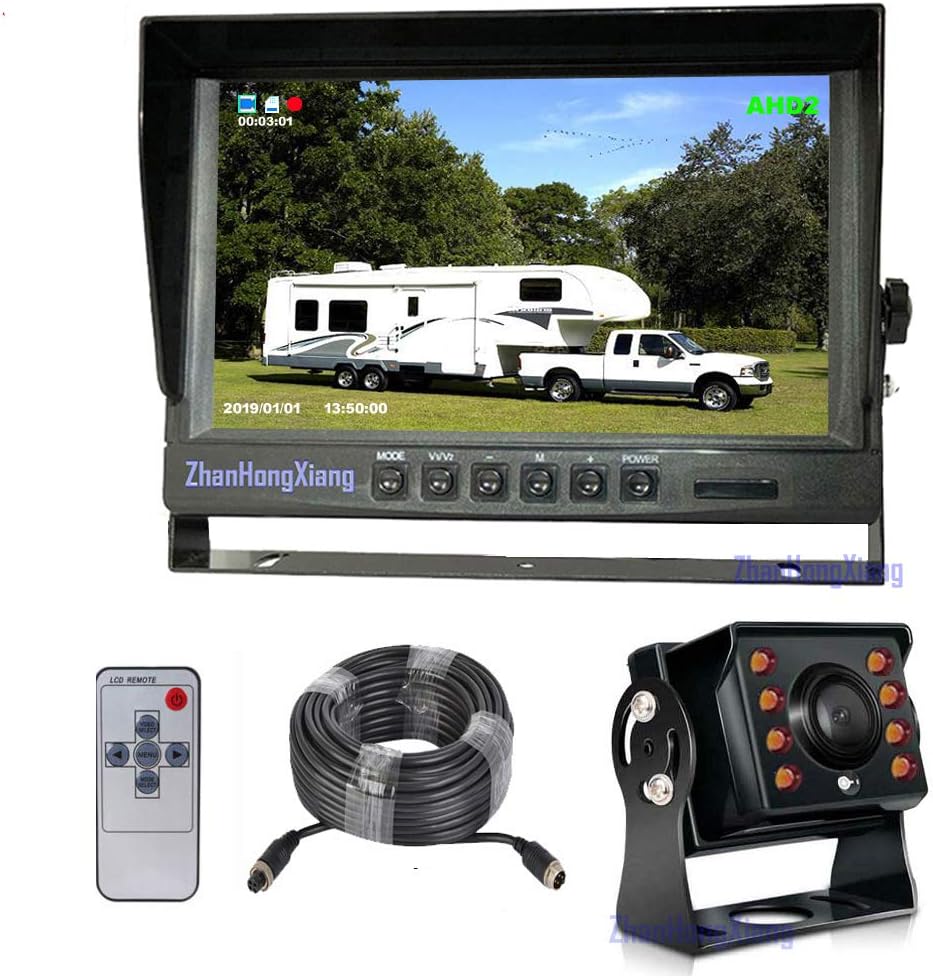

This is New Update Model AHD 1080P Backup Camera and ISP HD 9 inch DVR Rear View Monitor System
The Monitor has two video input and 2 split functions

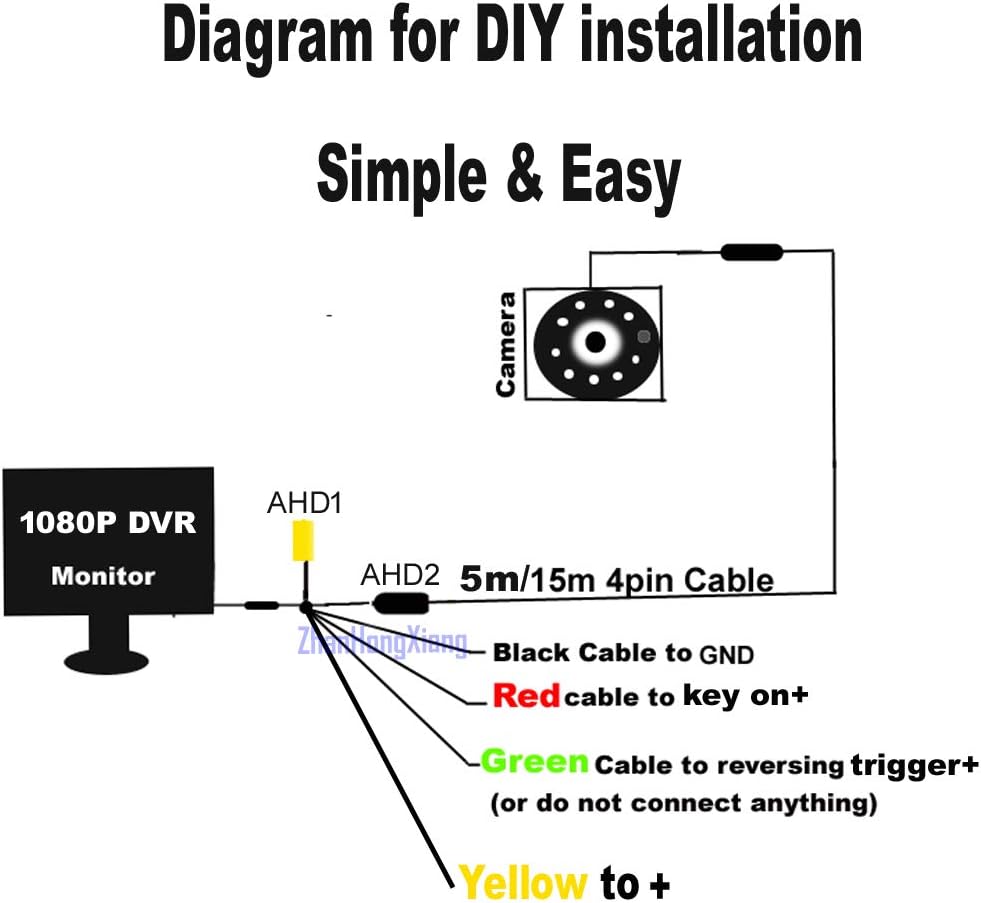

Can add the second AHD 1080P Car backup Camera to display 2 video at same time Easy and Simple to install, Only need to connect the monitor wire with car electronics system:
Red and yellow wire to car Positive/Live
Black wire to GND,
Green wire to reversing gear Trigger+ (or No need to connect)
Support reversing used or permanently used

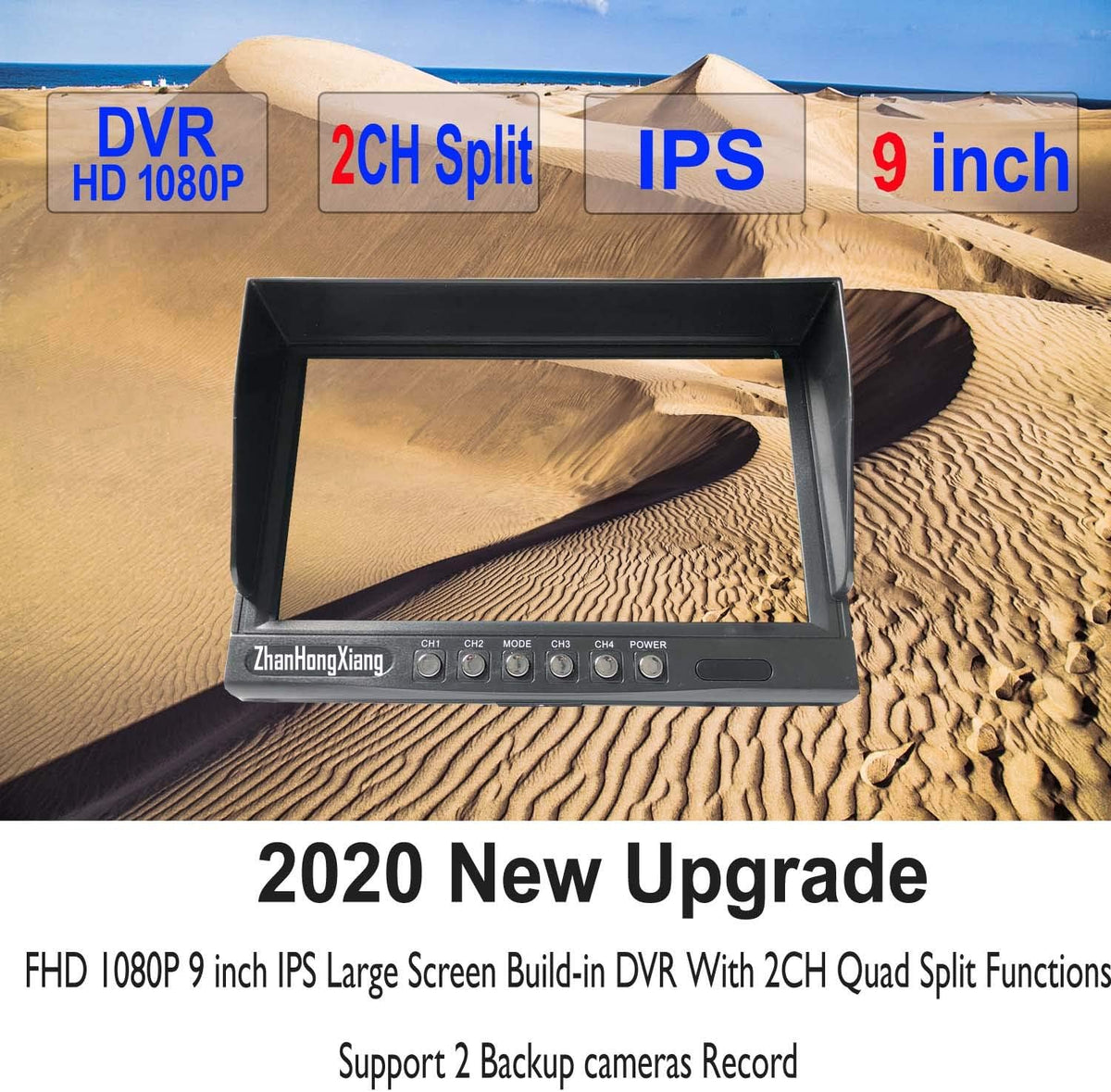

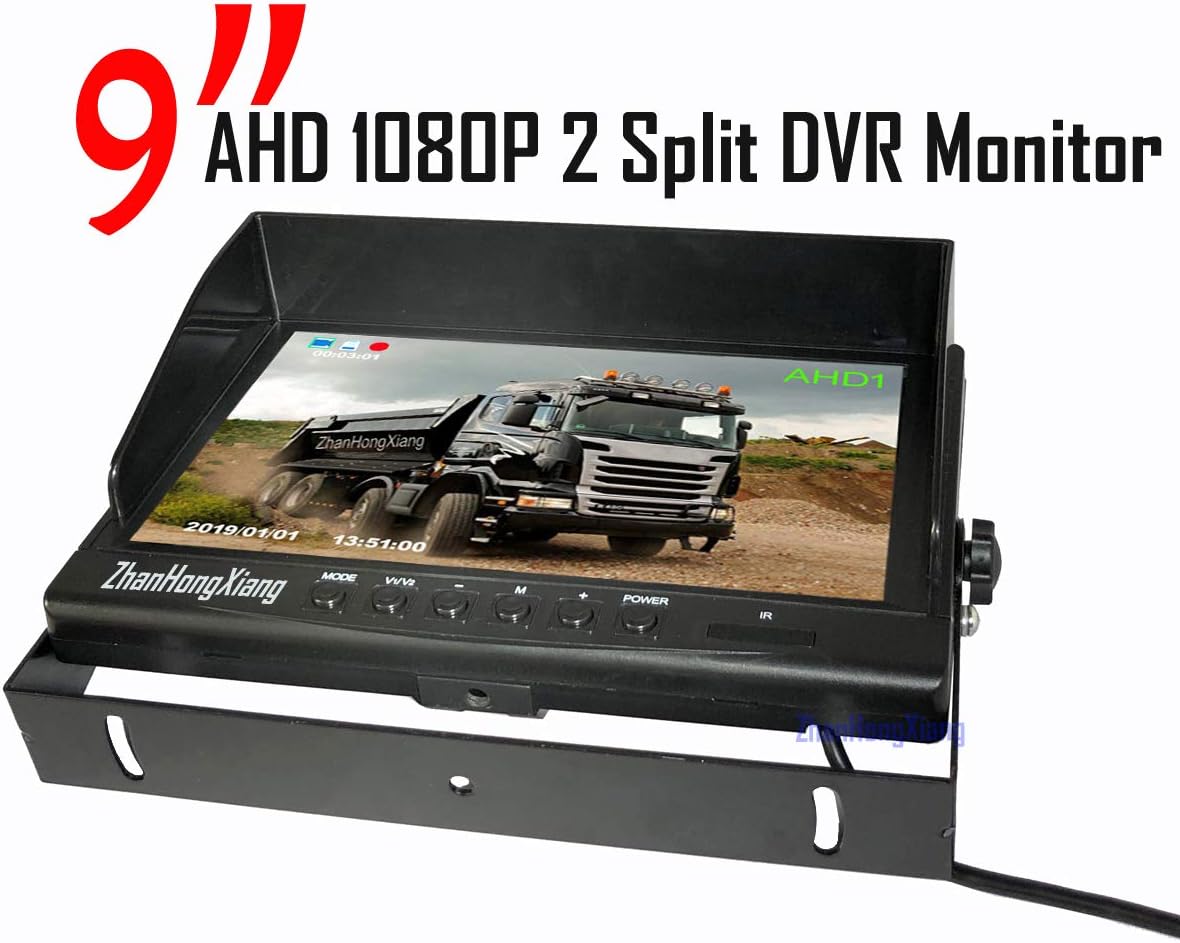

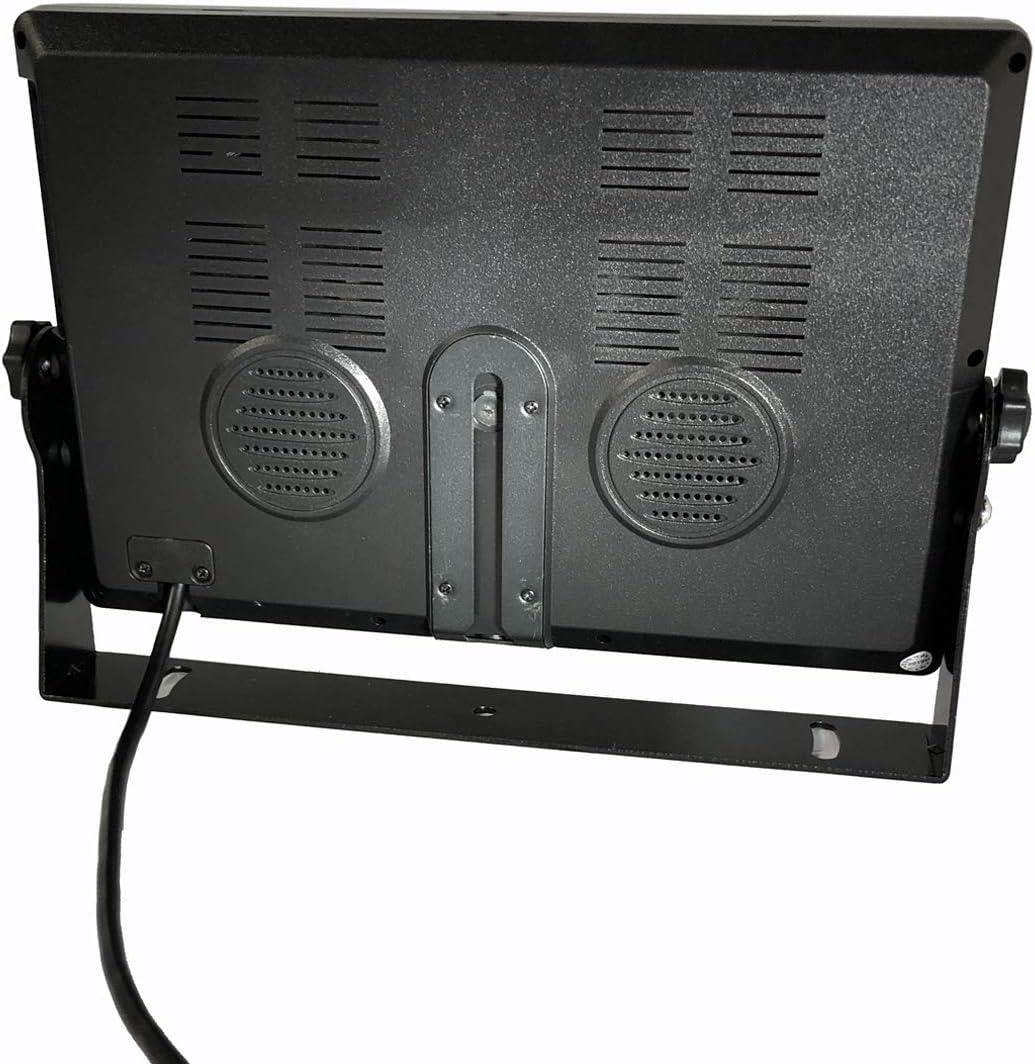

9 inch IPS AHD Monitor with SD DVR Recorder
Monitor dimensions: 230*155mm
Resolution: 1024*600 Pixels
System: PAL&NTSC auto-switching
Power: DC 12V-24V
Consumption:5W
Video: 2 way video input

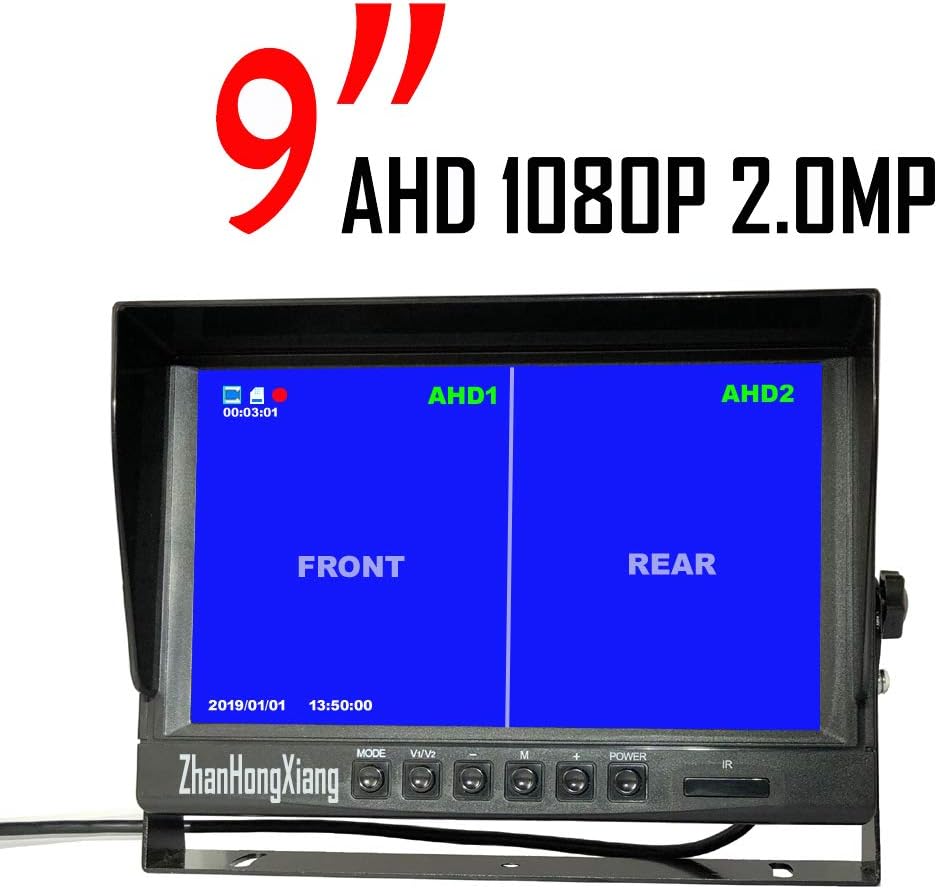

High Resolution with Split functions
Display single image or 2 split image,
Build in Great Loop DVR Recorder functions,
Supports Record 2 Channels Camera at the Same Time
Max support up to 128GB (80M/S above)
Reversing Grid Lines Can be turn on or off free
Image Can be flip with mirror /none Mirror or Upside Down
Net Weight: Approx. 1000g
Lauguage:English,Chinese

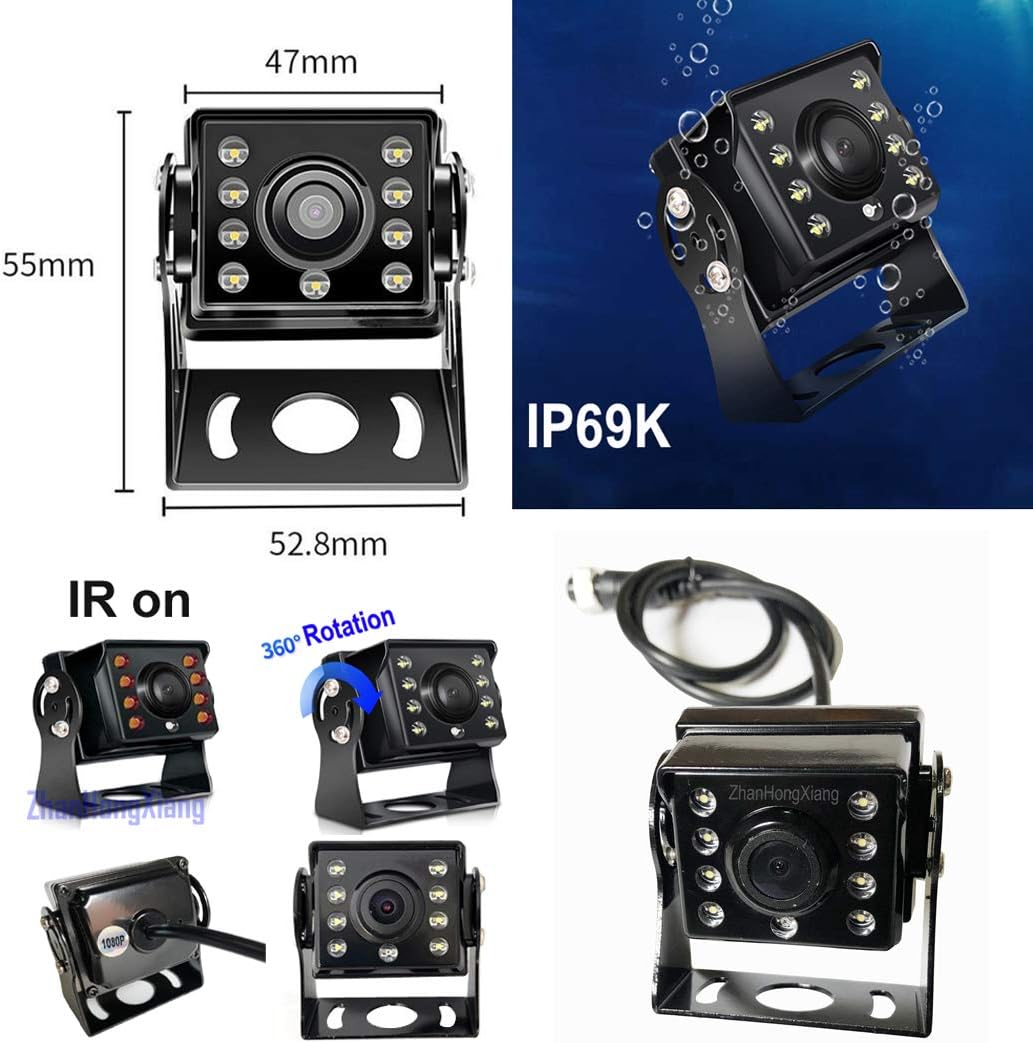

AHD 8 LED IR Car Rear View Camera
100% Not Wash Out AHD Mirror image Sensor no Grid Lines
Lens:2.1mm(170 Wide View angle )
Number of pixels:2 Megapixel Camera(1920*1080P)
Minimum illumination:0 LUX
Backlight compensation:Auto
White Balance:Auto Tracing
Auto Gain Control:Automatic
Night vision:8 LED IR
Video Output:4Pin Connector
work Temperature:-20°C~+60°C
Power Requirement:DC 12V-24V
Weight: Approx 200g
Waterproof:IP 69K

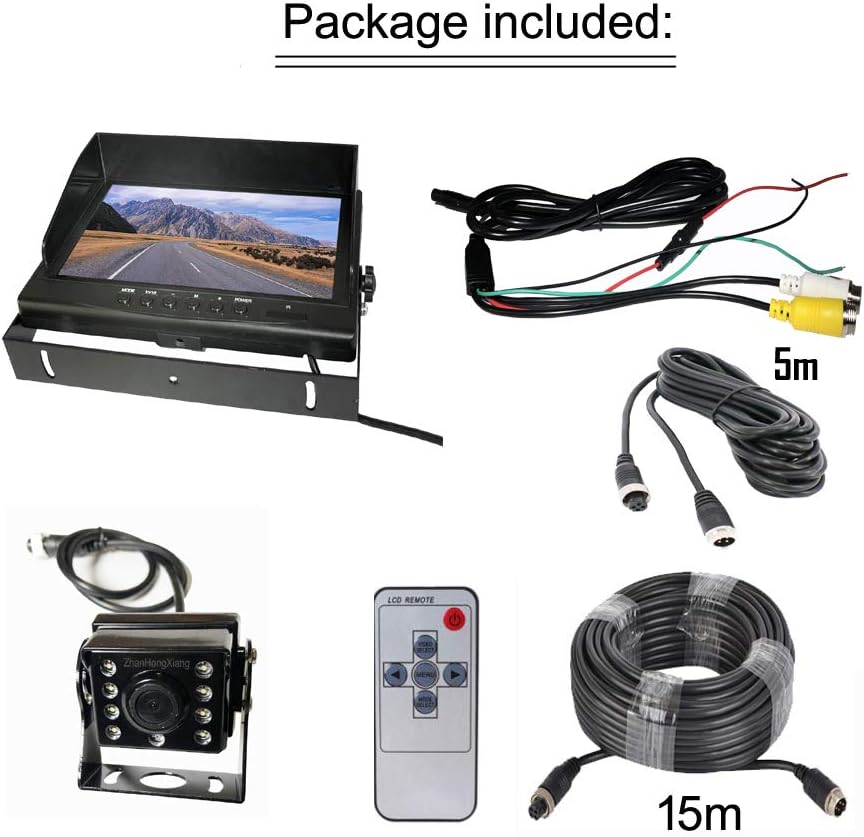

Package included:
1 x 4Pin 9' AHD DVR Monitor
1 x U Shape Metal Bracket
1 x Remote Controller
1 x 4Pin 8 LED IR Rear View Camera
1 x 4Pin 15M/49ft Aviation Extension Cable
1 x 4pin 5M/16ft Aviation Extension Cable
SD Memory Card excluded
